The Biofilter

Before dynamizing tap water in a house, it is important to remove the pollutants it may contain. These can come from micropollutants that would not have been retained by the treatment plant or those from the water conduits upstream of the individual water meter (contamination due to standing water, leaks, works etc.) …). To do this we offer new technology filtration with activated carbon compressed in a hollow fibre which integrates ionized silver. This filter is probably the most efficient and effective on the market and will remove most of the pollutants that would still be present in city water.

Why filter tap water?

Before dynamizing tap water in a house, it is important to remove the pollutants it may contain. These can come from micropollutants that would not have been retained by the treatment plant or those from the water conduits upstream of the individual water meter (contamination due to standing water, leaks, work etc.)​

​Active carbon filtration​

To do this, we offer activated carbon filtration compressed in a hollow fiber which integrates ionized silver which will largely remove the pollutants (measured in micrograms µg / L) which would still be present in city water (i.e. chlorine, bad tastes and odors, iron and corrosion of pipes, bacteria, chemicals, nitrates & nitrites, sulfates, heavy metals, including arsenic, cadmium, chromium, mercury, nickel, lead, selenium and zinc, aluminum, drugs and hormones, radioactivity, etc.). This filtration preserves the trace elements (measured in µg / L) in water which are fully assimilated by the body as well as inorganic minerals (measured in mg / L) which are partially metabolized and are energy receptors present in water.​

Dry residues, including lime, are therefore not retained by the filter like a softener, but they will be Restructuring by the Biodynamizer® to avoid clogging the sanitary pipes.​

The minerals are not removed either like a reverse osmosis device, but they are restructured and ionized by the Biodynamizer® so as not to overload the kidneys during their evacuation by urine (see BEV study).​

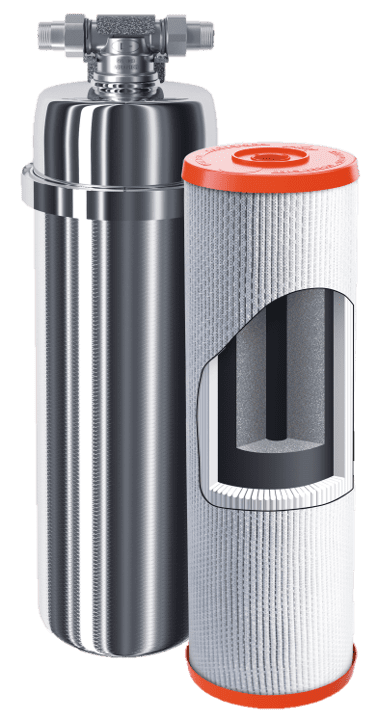

Technical details of the AQUAPHOR BIOFILTER

  • Case: Stainless steel 316 (Cr18-N10)
  • Capacity: 100 m3 and up to max 1 year
  • Flow: 1.5m3/ Hour (or 25 L / min)
  • Max operating pressure: 6.5 bar, pressure loss 0.1 bar if tap water pressure: 1.5 >< 6 bar
  • Legal warranty: 2 years
  • 3/4 inch white brass fittings
  • Dimensions:
    • Biofilter (stainless steel housing): H: 60 cm x Diameter = 18 cm
    • Biofilter (housing + cartridge) in its packaging : weight = 7.3 Kg, dimensions: length = 60 cm x width = 19 cm x height = 21 cm;
    • Cartridge: weight 3.5 kg of mixture of activated carbon and Aqualen® fiber ; dimensions: length = 50 cm x diameter = 15 cm,
    • The cartridge in its packaging: weight = 3.8 Kg, dimensions: length = 52 cm x width = 15 cm x height = 15 cm
  • Price: € 480 (excluding taxes, transport & placement)​
  • Additional cartridges (B520-13): € 180 excl. VAT (excluding transport)

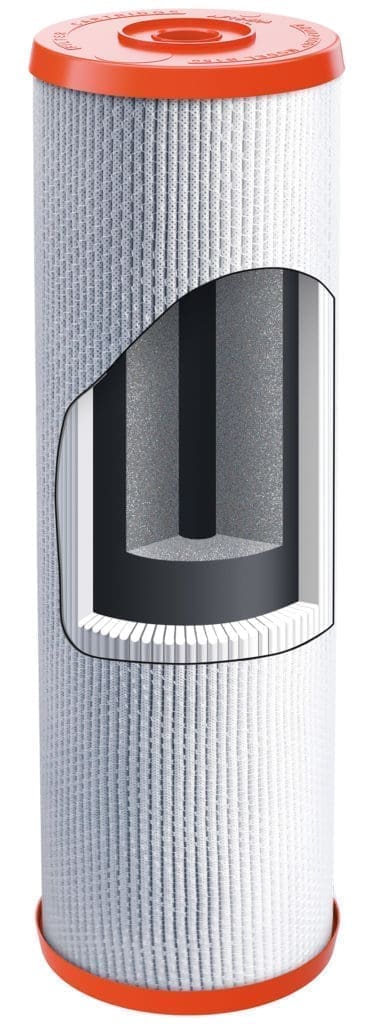

Maintenance of the Aquaphor Biofilter: replacement of the filter cartridge

The Aquaphor filter contains a filter cartridge (B520-13) with a capacity of 100 m3 (100,000 liters) and a maximum of 1 year. Depending on the number of consumers, this is equivalent to a water consumption of +/- 8 months for 5 people (at an average consumption of 30m3 / year / person); It is important to renew the filter cartridge after these parameters have been reached because, beyond the capacity indicated, the cartridge is likely to become clogged and lose efficiency, with the consequence that its microbial load can become excessive. ! The cartridge can be changed in 5 minutes without the intervention of a plumber! It is advisable to let the water run for 5 minutes after replacing the cartridge! The air will escape through the open water tap (the opaque appearance of the water is actually air mixed with water). After several minutes of water flow, the air present in the pipes will disappear and the water will be immediately transparent again!​

Given the consumption, water quality and sanitary installation variables, the responsibility for renewing the cartridge is the responsibility of the customer and not SA Dynamized Technologies.​

When replacing the cartridge, it is also useful to check the effectiveness of the seals (o-rings) that encase the filter housing (in order to guarantee it is waterproof) .​
